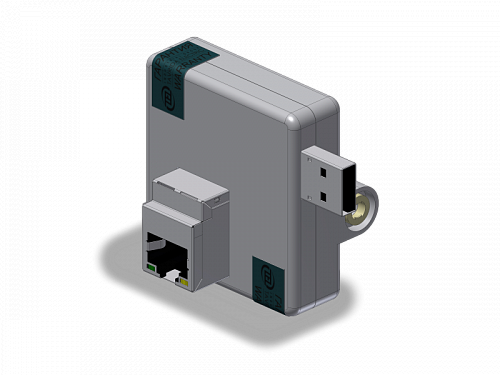

Ethernet Module
EA_IntBoard_17Description
This USB-to-Ethernet module allows to connect the RC5 to a network for full remote (SCADA) and local communication and engineering functionality via RJ45 port.
Characteristic
Main | |
---|---|
Interface | RJ-45 10/100 Ethernet port |
Maximum receive / transmit speed | Up to 70 Mbps (full duplex mode) |
Power consumption | 1.0 W (max) |
Operation temperature | -40…+85 °C |
Applicable product | Rec15_AI1_5p, Rec25_AI1_5p |
